SKU: TACH-10
Amprobe TACH-10 Contact and Non-Contact Tachometer
Amprobe TACH-10 Contact and Non-Contact Tachometer Measures rotational and surface speed User selectable units for contact measurement: RPM, m/min, ft/min, yd/min Non-contact measurement in RPM Digital display Auto power off function Easy to select units and mode functions

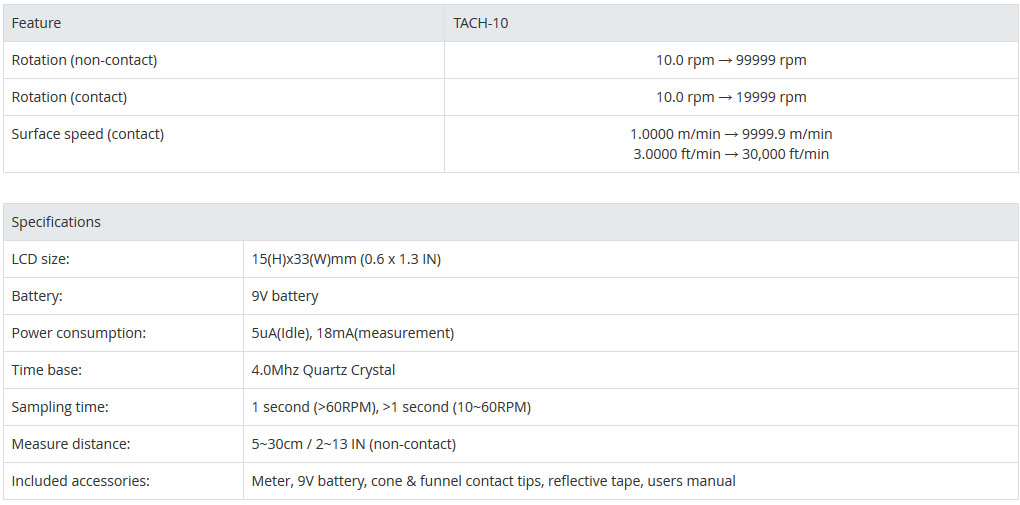

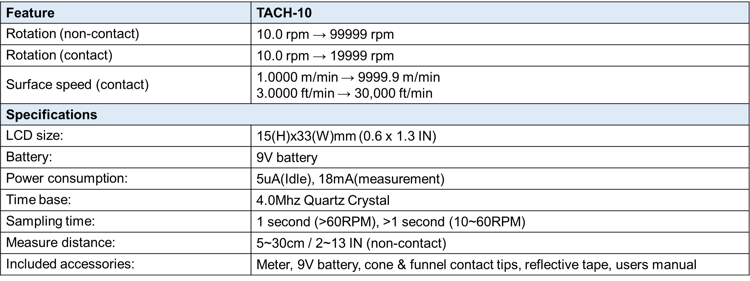

Specifications
| Rotation (Non-Contact) | 10.0~99999 RPM |
| Rotation (Contact) | 10.0~19999 RPM |
| Surface Speed (Contact) | 1.0000~9999.9 m/min / 3.0000~30,000 ft/min / 1.0~10,000 yd/min |
| Resolution (RPM Unit) | 0.001/0.01/0.1/1 |
| Resolution (M/Min Unit) | 0.0001/0.001/0.01/0.1 |
| Resolution (Ft/Min Unit) | 0.0001/0.001/0.01/0.1 |
| Resolution (Yd/Min Unit) | 0.0001/0.001/0.01/0.1 |
| Accuracy | +/-(0.1% of rdg.+2 digit) |
| Operating Temperature | 0 to 50°C (32°F to 122°F) |
| Operating Humidity | <80% RH |
| Storage Temperature | -10 to 50°C (14°F to 122°F) |
| Storage Humidity | <90% RH |
| EMC | EN 61326-1 |
| Dimensions | L266.6 x W177.8 x H81.28 mm (10.5 x 7 x 3.2 in) |
| Weight | 544.3g (1.2 lbs) |
| Battery | 9V battery |
| LCD Size | 15(H) x 33(W) mm (0.6 x 1.3 in) |
| Power Consumption | 5uA (Idle), 18mA (measurement) |
| Time Base | 4.0 MHz Quartz Crystal |
| Sampling Time | 1 second (>60 RPM), >1 second (10~60 RPM) |
| Measure Distance (Non-Contact) | 5~30 cm / 2~13 in |
| Included Accessories | Meter, 9V battery, Cone & funnel contact tips, Reflective tape, Users manual |
Datasheet
Download datasheet (PDF)Description
Universal, economical tachometer measuring rotational or surface speed either in contact or non-contact way. Widely used to measure rotational speed of motors, conveyer belts and other moving or rotating systems.
