SKU: TMA10A
Amprobe TMA10A Anemometer with Flexible Precision Vane
Measure air velocity or air flow RS232 interface output with optional software and cable, TM-SWA Continuous moving average for up to 2 hours MIN/MAX/AVG reading on a single point Air Velocity average for multiple points Data Hold to freeze measurement display of both readings Auto power off function Obtain air flow (CFM) average for multi-point

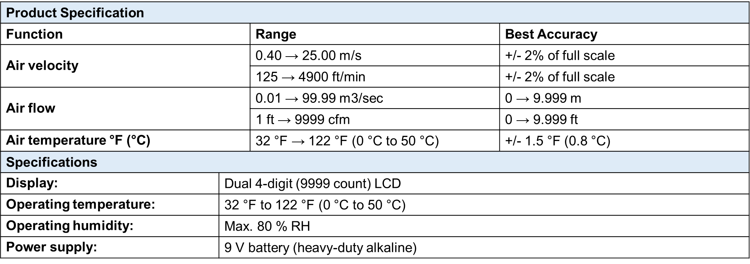

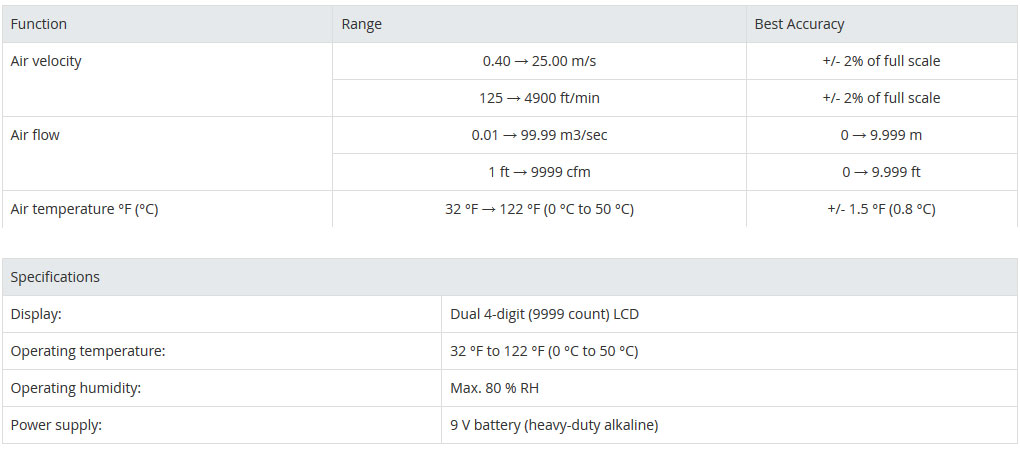

Specifications
| Air Velocity Range (m/s) | 0.40 to 10.00 m/s / 10.00 to 25.00 m/s |
| Air Velocity Range (ft/min) | 80 to 1965 ft/min / 1965 to 4900 ft/min |
| Air Velocity Resolution (m/s) | 0.01 m/s |
| Air Velocity Resolution (ft/min) | 1 ft/min |
| Air Velocity Accuracy (0.40–10.00 m/s) | ±0.5 m/s |
| Air Velocity Accuracy (10.00–25.00 m/s) | ±0.75 m/s |
| Air Velocity Accuracy (80–1965 ft/min) | ±100 ft/min |
| Air Velocity Accuracy (1965–4900 ft/min) | ±150 ft/min |
| Air Flow Range (CMS) | 0.01 to 99.99 m³/sec |
| Air Flow Range (CFM) | 1 to 9999 ft³/min |
| Air Flow Resolution (CMS) | 0.01 |
| Air Flow Resolution (CFM) | 1 |
| Air Flow Input Area (m) | 0 to 9.999 m |
| Air Flow Input Area (ft) | 0 to 9.999 ft |
| Air Temperature Range | 0 °C to 50 °C (32 °F to 122 °F) |
| Air Temperature Resolution | 0.1 °C / 0.1 °F |
| Air Temperature Accuracy | ±0.8 °C (±1.5 °F) |
| Display | Dual 4-digit (9999 count) LCD |
| Moving Average | Continuous moving average up to 2 hours |
| Readings | MIN / MAX / AVG from single measurement point |
| Multi-Point Averaging | Air velocity and air flow (CFM) multi-point averaging |
| Data Hold | Yes |
| Auto Power Off | Yes |
| Vane | Remote flexible precision vane |
| Interface | RS232 (optional TM-SWA software and cable) |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Operating Humidity | Max. 80% RH |
| Power Supply | 9V battery (heavy-duty alkaline) |
| Included Accessories | Deluxe hard carry case, pre-installed batteries |
| Optional Accessories | TM-SWA software and RS232 cable |
Datasheet
Download datasheet (PDF)Description
The TMA10A Anemometer with Flexible Precision Vane is ideal for HVAC/R technicians measuring heating, ventilation, air-conditioning, refrigeration, wind flow and temperature in residential, commercial and industrial air conditioning systems. It offers numerous functions-use it to check air velocity FPM (feet per minute), air volume (flow) CFM (Cubic feet per minute) plus the remote vane allows greater measurement location flexibility. Switch between °C and °F. Input the area of airflow measurement to gain accurate air velocity results. Measure an air flow source for a continuous moving average for up to two hours. Determine minimum, maximum and average readings from a single point air source.
Large dual display allows views of both air flow and velocity measurements plus temperature. Long extended flexible cord for remote vane access capabilities.
All the TMA10A measurements can be output to a computer for charting or analysis by optional model TM-SWA software and RS232 cable. Shipped in a deluxe hard carry case to protect and transport your Anemometer.
For measuring indoor air quality, and for HVAC/R technicians measuring heating, ventilation, air-conditioning, refrigeration, wind flow and temperature in residential, commercial and industrial air conditioning systems.
