SKU: TC01A/TC01B/TC01C
Fluke iSee™ Mobile Thermal Camera - TC01A/TC01B/TC01C
Key Features Note: for the 25Hz version of the iSee camera there is a trade compliance implication where an end user statement is needed for export license application. 256 x 192 pixels, detailed image quality, and 25 Hz frame rate for smooth video recording Up to 550 °C (1022°F), suitable to use in many applications 50 mK (0.05 °C) thermal sensitivity for fine differences and ± 2% or ±2 °C accuracy to ensure reliable results Customize image view with more than 10 standard or custom color palettes Compact design as light as 22 g

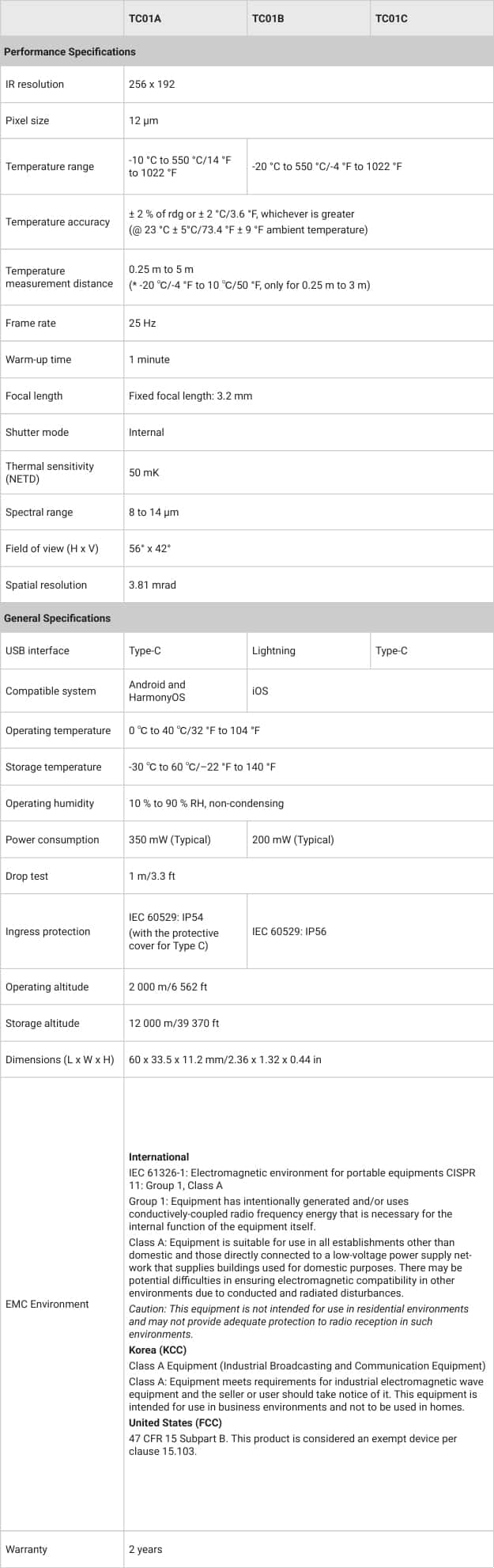

Specifications
| Thermal Resolution | 256 x 192 pixels |
| Temperature Range | -10 to 550°C (14 to 1022°F) |
| Thermal Sensitivity | 50 mK (0.05°C) |
| Accuracy | ±2% or ±2°C (±3.6°F) |
| Frame Rate | 25 Hz |
| Weight | 22 g (0.78 oz) |
| Drop Test Rating | 1 meter |
| IP Rating | IP54 (TC01A) / IP56 (TC01B/TC01C) |
| Color Palettes | 10+ standard and custom options |
| Interface | Lightning (TC01B), USB Type-C (TC01C) |
Datasheet
Download datasheet (PDF)Description
Product overview: Fluke iSee™ Mobile Thermal Camera – TC01A/TC01B/TC01C

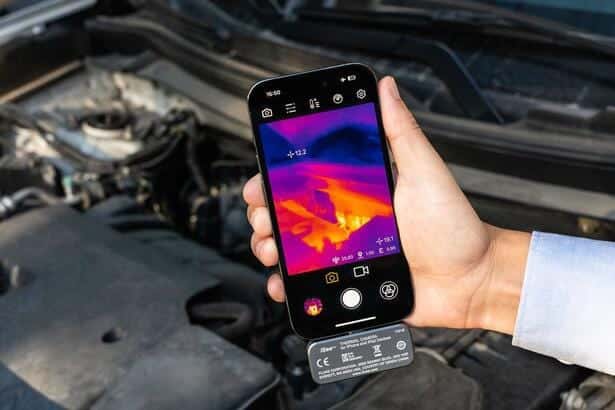

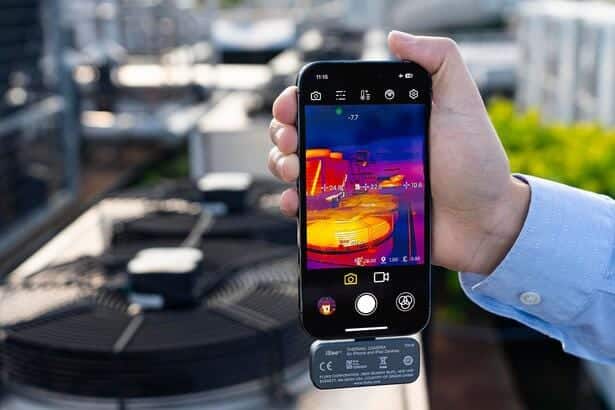

Experience fast and easy inspections on the go with Fluke iSee™ Mobile Thermal Camera, weighing just 22g. It takes only a second to start using. The wide temperature measurement range, up to 550°C (1022°F), makes it suitable for various applications, including inspecting electrical cabinets, identifying HVAC issues, and installing underfloor heating. Fluke iSee boasts professional-grade image quality, comparable to high-end thermal cameras, with a 256 x 192 pixel thermal resolution and smooth video recording at a 25 Hz frame rate. Additionally, our software offers comprehensive spot, line, and area temperature analysis for precise diagnostics.
Detailed image quality comparable to professional thermal imagers
- 256 x 192 pixels, detailed image quality
- -10 to 550 °C (14 to 1022 °F) range, covering wide applications
- 50 mk (0.05 °C) thermal sensitivity for fine screening
- ± 2% or ± 2 °C (3.6 °F) accuracy, reliable and stable
- 25 Hz frame rate, smooth video without lag
- More than 10 standard and custom color palettes to achieve a variety of personalized images
Full temperature range analysis
- Real-time high and low-temperature capture, without missing any details
- Adjustable emissivity to cope with different materials
- Comprehensive temperature analysis for spot, line and area, professional-grade thermal imaging software
- Real-time temperature alarm, timely response, and handling
- Unattended automatic time-lapse photography
- Infrared and visible light image comparison for locating, comparing, and archiving
Real-time image sharing, communication without barriers
- Real-time image and video sharing and management, fast and efficient communication
- It is easy to add image annotations, and communication without barriers
Small and portable, it takes a second to get started
- Compact design as light as 22 g (0.78 oz), perfect for your mobile phone size
- The iSeeTM is made of high-quality aluminum material for the airway, with uniquely treated and laser-etched surface
- Up to 1-meter drop test, IP56 (TC01B/TC01C)/IP54 (TC01A) ingress protection for Fluke durability

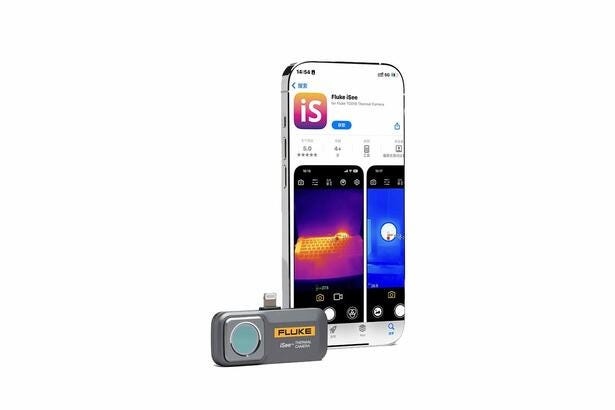

- Optimized Fluke iSeeTM application interfaces and menus with professional operating experience make it easy to access all functions

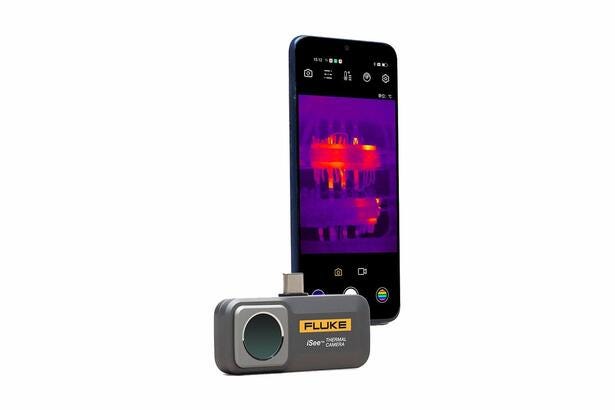

- The TC01B features a Lightning interface, while the TC01C has a Type-C interface. Both devices are compatible with iPhone and iPad*, fully supporting iOS and have obtained Apple MFI Certification.
