LinkIQ™ Cable + Network Tester
Key features Cable testing you trust. Network testing you need. Measure network capacity up to 10 Gig via frequency based measurements Troubleshoot active networks by providing connected switch information (Switch Name, IP Address, MAC Address, Port Number, and VLAN info) Test connectivity to TCP/IP network through IP configuration and ping Verify Gateway and DNS server responsiveness and availability Install and troubleshoot PoE devices via Switch Negotiation and PoE Load test. Ethernet Alliance Certified for reliable multivendor interoperability. Graphical wiremap and length test to identify common faults that occur with cabling installation Document work through LinkWare™ PC reporting Supports Industrial Ethernet (EtherNet/IP, PROFINET, EtherCAT, and others) Industrial Ethernet Kit supports Industrial Connectors (M8D, M12D, M12X)
Specifications
| Cable Performance | Up to 10 Gig (frequency-based measurements) |
| Network Diagnostics | Switch name, IP, MAC, Port, VLAN |
| Connectivity Testing | TCP/IP ping, gateway and DNS verification |
| PoE Testing | PoE device installation and troubleshooting (Ethernet Alliance certified) |

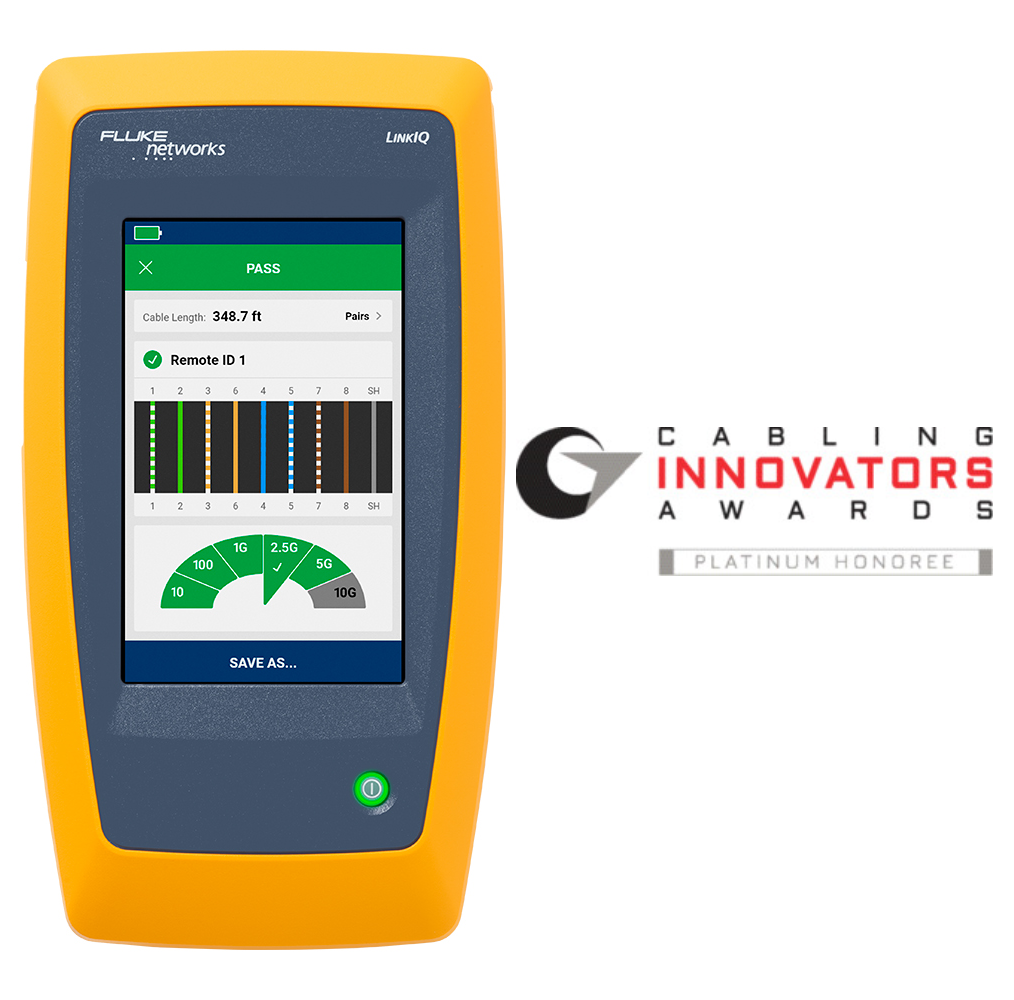

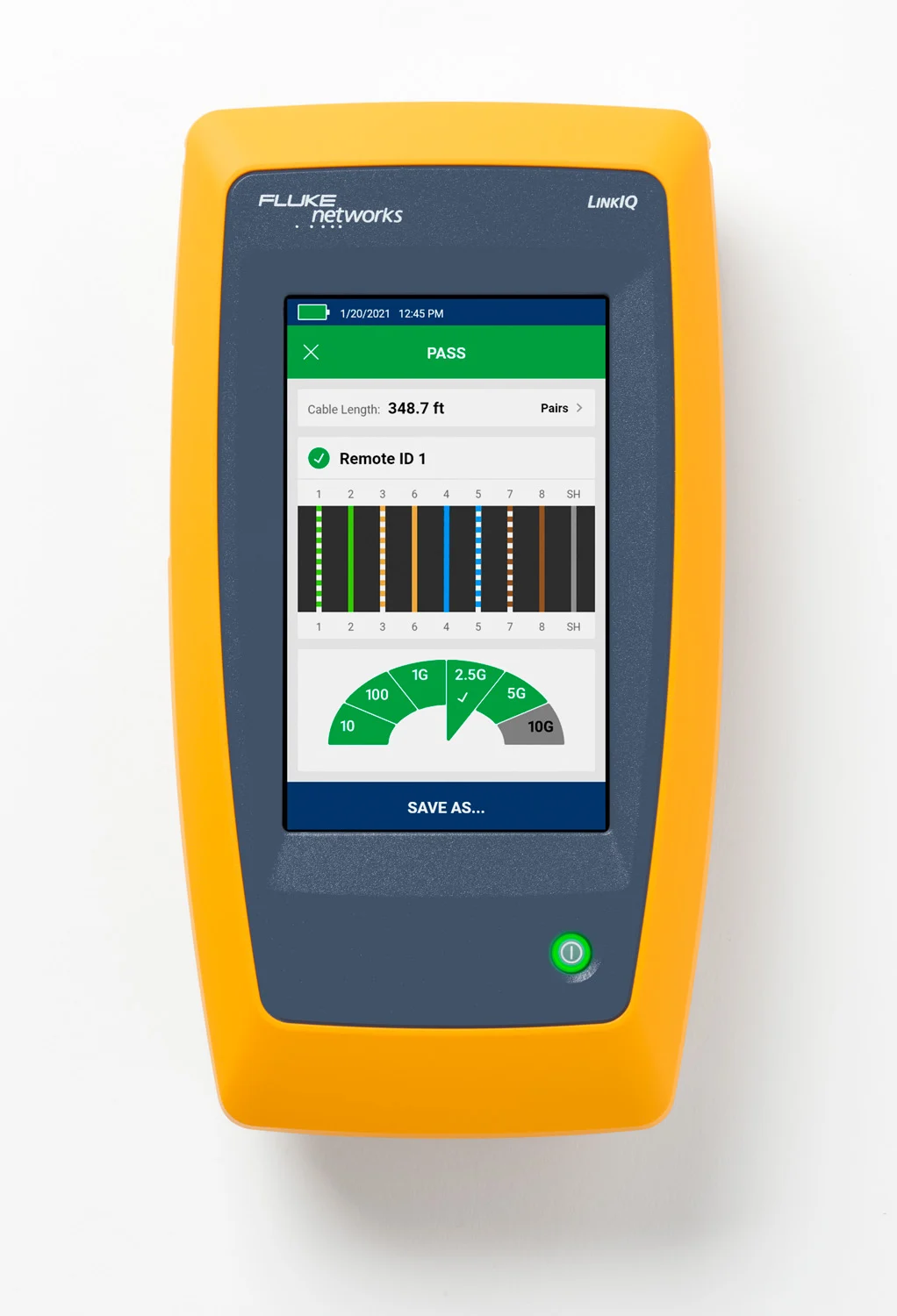

| Cable Mapping | Graphical wiremap and length measurement |
| Distance to Fault | Yes |
| Toning | Analog and digital toning |
| Industrial Ethernet | EtherNet/IP, PROFINET, EtherCAT |
| Industrial Connectors | M8D, M12D, M12X |
| Port Blink | Yes |
| Remote Office Locator | Yes |
| Software | LinkWare™ PC |
Datasheet
Download datasheet (PDF)Description
The LinkIQ™ Network+Cable Tester is designed to provide trusted cable testing along with network testing professionals need to do their jobs. LinkIQ™ validates cable performance (up to 10 Gig) using frequency-based measurements and provides distance to fault information along with a wire map of the cable under test. The LinkIQ™ also performs ping tests to verify connectivity and nearest switch diagnostics to identify key network issues and validate switch configuration eliminating the need of using another device. Additional features include, Analog and Digital Toning, Port Blink, Remote Office Locators, and the ability to manage results via LinkWare™ PC.
