SKU: Fluke-1507
Fluke 1507 Insulation Resistance Testers
Key features for Fluke 1507 Rugged, compact advanced insulation resistance tester for electrical contractors and industrial and commercial electricians Automatically calculates Polarization Index and Dielectric Absorption Ratio Makes repetitive tests simple and easy with a Compare (Pass/Fail) function Offers multiple insulation test voltages: 50 V, 100 V, 250 V, 500 V, and 1000 V

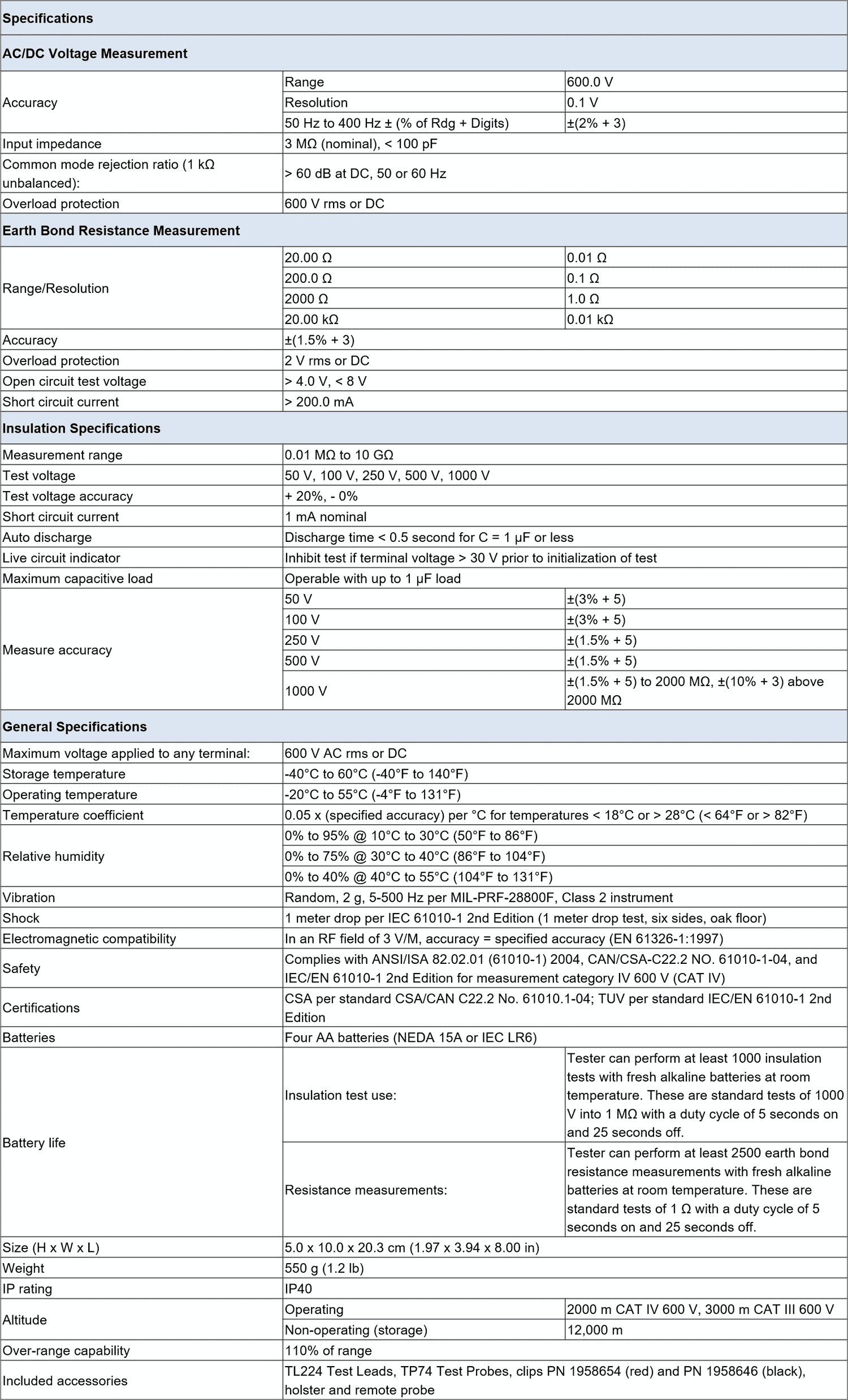

Specifications
| Insulation Test Range | 0.01 MΩ to 10 GΩ |
| Test Voltages | 50 V, 100 V, 250 V, 500 V, 1000 V |
| Test Voltage Accuracy | +20%, -0% |
| Short Circuit Current | 1 mA nominal |
| Auto Discharge | <0.5 seconds for ≤1 µF capacitive load |
| Maximum Capacitive Load | 1 µF operable |
| Insulation Accuracy (50 V / 100 V) | ±(3% + 5 digits) |
| Insulation Accuracy (250 V / 500 V) | ±(1.5% + 5 digits) |
| Insulation Accuracy (1000 V, up to 2000 MΩ) | ±(1.5% + 5 digits) |
| Insulation Accuracy (1000 V, above 2000 MΩ) | ±(10% + 3 digits) |
| AC/DC Voltage Range | 0.1 V to 600.0 V |
| AC/DC Voltage Resolution | 0.1 V |
| AC/DC Voltage Accuracy | ±(2% + 3 digits) at 50–400 Hz |
| Voltage Input Impedance | 3 MΩ nominal, <100 pF |
| Voltage Overload Protection | 600 V rms or DC |
| Resistance Range | 0.01 Ω to 20.00 kΩ |
| Earth-Bond Continuity Ranges | 20.00 Ω / 200.0 Ω / 2000 Ω / 20.00 kΩ |
| Earth-Bond Continuity Resolution | 0.01 Ω / 0.1 Ω / 1.0 Ω / 0.01 kΩ |
| Earth-Bond Continuity Accuracy | ±(1.5% + 3 digits) |
| Earth-Bond Test Current | 200 mA |
| Earth-Bond Overload Protection | 2 V rms or DC |
| Maximum Voltage to Any Terminal | 600 V AC rms or DC |
| Overvoltage Category | CAT IV 600 V / CAT III 1000 V |
| IP Rating | IP40 |
| Safety Certifications | CSA and TÜV per IEC/EN 61010-1 2nd Edition; ANSI/ISA 82.02.01 (61010-1) 2004; CAN/CSA-C22.2 |
| Operating Temperature | -20 °C to 55 °C (-4 °F to 131 °F) |
| Storage Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Temperature Coefficient | 0.05 × specified accuracy per °C outside 18–28 °C |
| Operating Humidity | 0–95% @ 10–30 °C; 0–75% @ 30–40 °C; 0–40% @ 40–55 °C |
| Vibration | 2 g random, 5–500 Hz per MIL-PRF-28800F Class 2 |
| Shock | 1-metre drop per IEC 61010-1 |
| Operating Altitude | 2000 m at CAT IV 600 V; 3000 m at CAT III 600 V |
| Non-Operating Altitude | 12,000 m |
| Display | Large backlit LCD |
| Power Source | Four AA alkaline batteries (NEDA 15A / IEC LR6) |
| Battery Life (Insulation Tests) | ≥1000 tests (1000 V into 1 MΩ, 5 s on / 25 s off) |
| Battery Life (Earth Bond) | ≥2500 earth-bond measurements |
| Dimensions | 5.0 × 10.0 × 20.3 cm (1.97 × 3.94 × 8.00 in) |
| Weight | 550 g (1.2 lb) |
Datasheet
Download datasheet (PDF)Description
For Fluke 1507
The Fluke 1507 is a versatile, compact, handheld insulation tester for advanced industrial and electrical insulation testing. Its multiple test voltages make it the ideal tool for many troubleshooting, commissioning, and preventative maintenance applications.
Take advantage of the 1507 full feature set to easily and quickly perform advanced insulation resistance testing. Its handy size and light weight make it easy to pack and use. Additional features, like the remote probe, save both time and money especially when performing repetitive tests. And its reasonable price and rugged reliability make it an excellent value.
Other useful capabilities:
- Performs insulation tests from 0.01 MΩ to 2.0 GΩ
- Includes live circuit detection to prevent insulation test if voltage >30 V is detected
- Includes auto-discharge of capacitive voltage for added user protection
- Measures AC/DC voltage from 0.1 V to 600 V and resistance from 0.01 Ω to 20.00 kΩ
- Provides lo-ohms earth-bond continuity (200 mA)
- Simplifies repetitive or hard-to-reach testing with the remote test probe
- Saves battery power with auto power off
- Presents results on a large, backlit display
- Features CAT IV 600 V overvoltage category rating
- Comes with remote probe, test leads, test probes, alligator clips and one-year warranty
- Accepts optional Fluke TPAK magnetic hanging system to free your hands for other work
- Runs on four AA alkaline batteries (NEDA 15 A or IEC LR6) for at least 1000 insulation tests
Need this instrument calibrated?
Unitest Instruments operates Singapore's SAC-SINGLAS accredited calibration laboratory (ISO/IEC 17025, Lab No. LA-2023-0845-C). We provide traceable calibration with full documentation for most test & measurement instruments.
Get a price for the Fluke 1507 Insulation Resistance Testers
Send your enquiry — we reply with pricing, availability & lead time within 1 business day.
